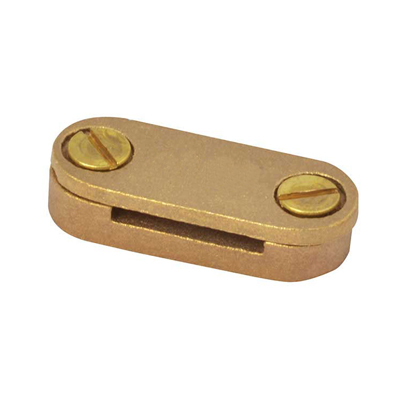

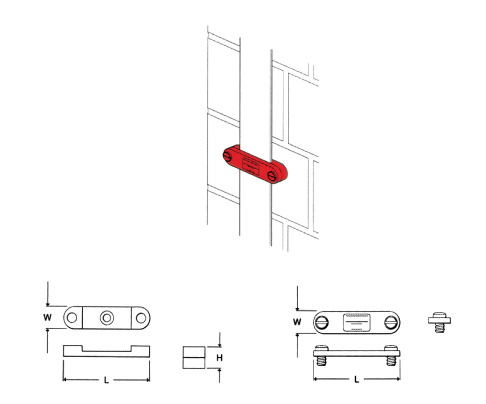

These are used to secure the flat conductor to the building. It is recommended to use DC Clips at 1 Mtr. distance. The Tape fits into the clip and is secured by two countersunk screws. These clips can be fastened to the building by recommended csk woodscrew 1½” No. 10 and No. 10 wall plug.

Material:

Body - Gunmetal

Screws - Naval Brass

Tape Size (mm)
20 x 3
25 x 3
25 x 6
30 x 2
31 x 3
31 x 6
38 x 3
38 x 6
50 x 3
50 x 6

Other sizes available on request.

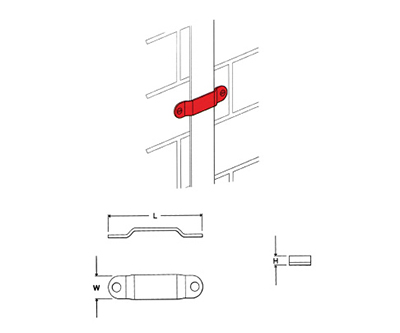

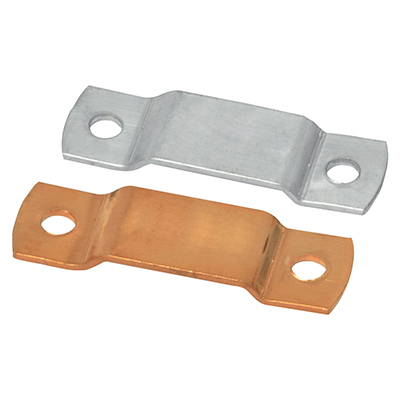

These are used to support & secure flat tape to the structure.

Material: Copper & Aluminum

Tape Size (mm)
20 - 3
25 - 3
50 - 6

Other Sizes Available on Request
