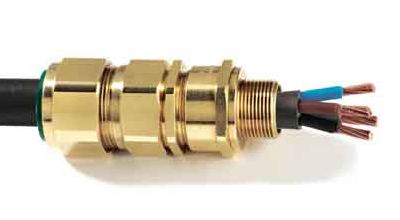

E1FW Type Cable Glands
| Standard | EN 50262 : 1999 |
| Application | This type of Cable Glands are suitable for indoor and outdoor use, appropriate for single wire armoured, plastic or rubber sheathed cable. Provides grip to the cable with outer and inner seals. Used popularly in most climatic conditions. Weatherproof and waterproof. |
| Ingress Protection | IP 66 |
| Material | Brass |
| Finish | Plain Brass or Nickel Plated |

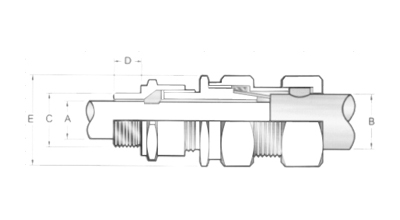

| TECHNICAL DATA | ||||||
|---|---|---|---|---|---|---|
| SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' | CABLE RANGE | |||
| MAX 'A' | MAX 'B' | A/F | A/C | |||
| 20S | M20 | 15.00 | 12.00 | 15.00 | 24.00 | 26.80 |
| 20L | M20 | 15.00 | 14.25 | 21.00 | 27.50 | 30.50 |
| 25L | M25 | 15.00 | 20.15 | 26.50 | 36.60 | 40.80 |
| 32L | M32 | 15.00 | 26.50 | 34.50 | 45.50 | 51.00 |
| 40L | M40 | 15.00 | 32.50 | 471.00 | 52.00 | 59.00 |
| 50S | M50 | 15.00 | 38.50 | 46.50 | 60.50 | 67.00 |
| 50L | M50 | 15.00 | 44.50 | 53.25 | 69.00 | 78.50 |
| 63S | M63 | 15.00 | 52.00 | 59.50 | 76.00 | 84.50 |
| 63L | M63 | 15.00 | 56.50 | 65.50 | 79.50 | 89.00 |
| 75S | M75 | 15.00 | 62.00 | 74.00 | 79.50 | 88.50 |
| 75L | M75 | 15.00 | 68.50 | 78.50 | 96.00 | 108.00 |
