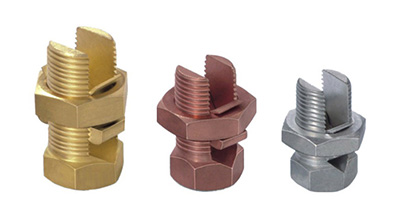

Split Bolt Connectors are used couple a range of Stranded or Solid circular Conductors and no specialized tool is required for installation.

Material:

Body - Tin Plating and Copper plating on High Strength Copper Alloy

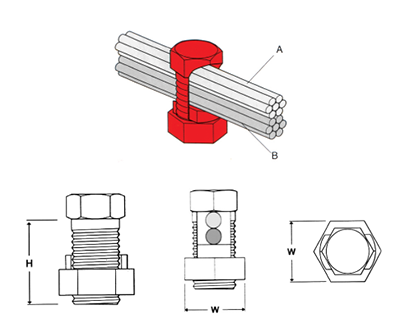

Size (mm2)	H	C	B A/F	D A/F	F
6	19.85	4	12.7	13.35	4.8
10	26.75	4.7	12.7	19	5.6
16	26	5.7	12.7	19	5.6
25	28	7.3	16	19	5.6
35	35	7.8	18.5	24	6.35
50	42	9.7	24.1	27.2	8.65
70	44.5	11.5	24.1	35.4	9.4
95	50	14.4	26.5	35.4	12
120	57.5	16.2	30	35.4	12
150	57.5	16.2	30	35.4	12
185	57.5	18.2	31.75	38	12
240	72.5	22	40	48.2	14.25
300	72.5	24	42	50	14.25
400	76.5	26	48	56	16
500	80	30	55	65	16
