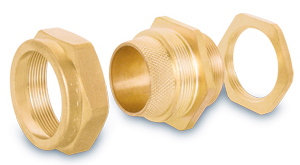

BW Type Cable Glands
| Size | 20 mm to 90 mm |
| Standard | BS 6121 |
| Application | Dry Indoor, for use with all types of SWA Cable |
| Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | -800 C to +3000 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
| TECHNICAL DATA | |||||
|---|---|---|---|---|---|
| SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' | CABLE RANGE | ||
| MM | INCH | MAX 'A' | MAX 'B' | ||
| BW 20S | 20 | 3/4 | 10 | 13.00 | 15.50 |
| BW 20L | 20 | 3/4 | 10 | 14.00 | 18.50 |
| BW 25L | 25 | 1 | 10 | 20.50 | 26.00 |
| BW 32L | 32 | 1.1/4 | 10 | 27.00 | 33.90 |
| BW 40L | 40 | 1.1/2 | 15 | 33.00 | 41.50 |
| BW 50S | 50 | 2 | 15 | 38.50 | 47.00 |
| BW 50L | 50 | 2 | 15 | 44.00 | 52.00 |
| BW 63S | 63 | 2.1/2 | 15 | 51.00 | 59.20 |
| BW 63L | 63 | 2.1/2 | 15 | 56.50 | 65.50 |
| BW 75S | 75 | 3 | 15 | 63.00 | 74.00 |
| BW 75L | 75 | 3 | 15 | 68.50 | 79.50 |
| BW 90L | 90 | 3.1/2 | 20 | 80.50 | 91.00 |
Also available in Kit Packaging and also as per the specification
