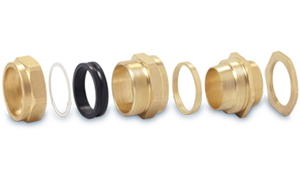

CW Type Cable Glands
| Size | 20 mm to 90 mm S & L |
| Standard | EN 50262 : 1999 |
| Application | For indoor or outdoor use with all types of SWA Cable |
| Function | Provide for Environmental Seal in the Cable Outer Sheath,. Also provide mechanical cable retention & electrical continuity. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | Standard seals -20 to +80 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, REducers, Adaptors, etc. as per the requirement |
| TECHNICAL DATA | |||||
|---|---|---|---|---|---|
| SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' | CABLE RANGE | ||
| MM | INCH | MAX 'A' | MAX 'B' | ||
| CW 20S | 20 | 3/4 | 10 | 11.80 | 17.80 |
| CW 20L | 20 | 3/4 | 10 | 14.00 | 20.80 |
| CW 25S | 25 | 1 | 10 | 18.00 | 24.00 |
| CW 25L | 25 | 1 | 10 | 20.30 | 27.40 |
| CW 32S | 32 | 1.1/4 | 10 | 24.50 | 31.00 |
| CW 32L | 32 | 1.1/4 | 10 | 26.50 | 34.20 |
| CW 40S | 40 | 1.1/2 | 13 | 30.40 | 38.50 |
| CW 40L | 40 | 1.1/2 | 13 | 33.20 | 41.00 |
| CW 50S | 50 | 2 | 13 | 40.00 | 47.00 |
| CW 50L | 50 | 2 | 13 | 44.00 | 53.50 |
| CW 63S | 63 | 2.1/2 | 14 | 50.00 | 59.00 |
| CW 63L | 63 | 2.1/2 | 13.50 | 56.00 | 66.00 |
| CW 75S | 75 | 3 | 15 | 63.50 | 73.00 |
| CW 75L | 75 | 3 | 15 | 69.50 | 79.00 |
Also available in Kit Packaging and also as per the specification
